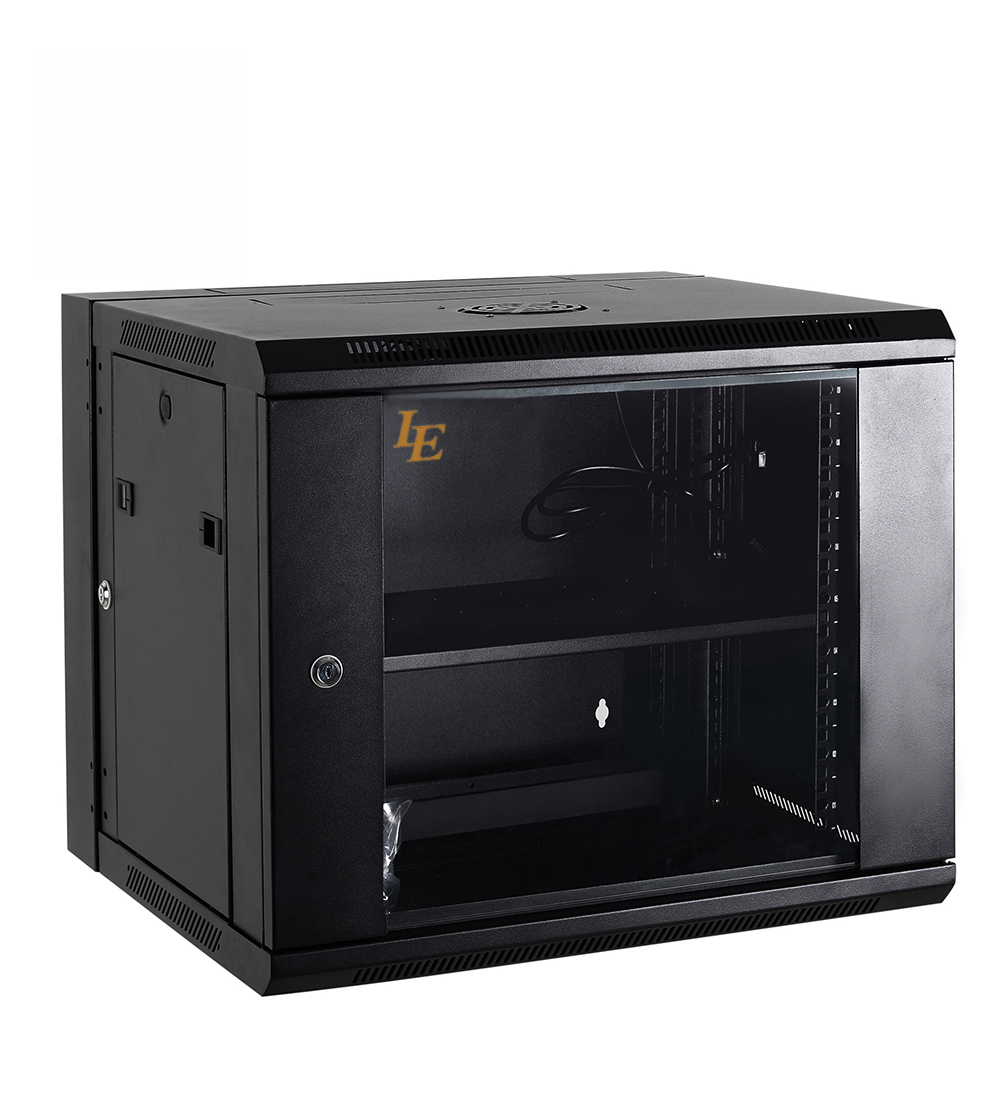

4U 6U 9U 12U 19 Inch 600x550mm 600x600mm Data Dual Section Wallmount Cabinet with Removable Side Panels

Основная информация
Место происхождения: Китай
Фирменное наименование: LE/ OEM
Сертификация: CE ROHS
Номер модели: WD1
Документ: LE Catalogue 2026.01.27_7_W...D1.pdf
Количество мин заказа: 100
Упаковывая детали: КОРОБКА
Время доставки: 25-30 дней
Условия оплаты: Т/Т
Название продукта: 4U 6U 9U 12U 19-дюймовый двухсекционный настенный шкаф для передачи данных 600x550 мм Тип: Настенный сетевой шкаф
Цветной серийный номер: Рал9004; Рал9005; Рал7035 Высота: 4U-27U
Толщина материала: 1.2 мм/на заказ Грузоподъемность: Статическая нагрузка: 60 кг
Степень защиты: IP20 Поверхностная обработка: Обезжирение, маринование, фосфатирование, покрытие порошком
Приложение: Привязывать сети OEM-сервис: Принимать
Выделить:

19 inch wallmount server cabinet

,

dual section server rack with removable panels

,

600x600mm data cabinet with warranty

4U 6U 9U 12U 19 Inch 600x550mm 600x600mm Data Dual Section Wallmount Cabinet with Removable Side Panels

4U 6U 9U 12U 19 Inch 600x550mm 600x600mm Data Dual Section Wallmount Cabinet with Removable Side Panels 0


 4U 6U 9U 12U 19 Inch 600x550mm 600x600mm Data Dual Section Wallmount Cabinet with Removable Side Panels 14U 6U 9U 12U 19 Inch 600x550mm 600x600mm Data Dual Section Wallmount Cabinet with Removable Side Panels 24U 6U 9U 12U 19 Inch 600x550mm 600x600mm Data Dual Section Wallmount Cabinet with Removable Side Panels 34U 6U 9U 12U 19 Inch 600x550mm 600x600mm Data Dual Section Wallmount Cabinet with Removable Side Panels 4

S/N  LE-WD1
Standard

 Comply with ANS/EIA RS-310-D, IEC297-2,

 DIN41491, PART1, DIN41491, PART7, ETSI Standard

Material  SPCC quality cold rolled steel; Thickness:1.2mm
 Tempered glass: Thickness:5.0mm
Loading Capacity  Static loading: 60kg
Degree of protection  IP20
Surface Finish  Degreasing; Pickling; Phosphating; Powder Coated
Product Specification  4U-27U
 Width: 600mm
 Depth: 550mm, 600mm

4U 6U 9U 12U 19 Inch 600x550mm 600x600mm Data Dual Section Wallmount Cabinet with Removable Side Panels 5

4U 6U 9U 12U 19 Inch 600x550mm 600x600mm Data Dual Section Wallmount Cabinet with Removable Side Panels 6

Main Structure



1. Cable entry plate

2. Back box (swing)

3. Frame

4. Side panel

5. Mounting profile (L-shaped)

6. Steel front door

7. Tempered glass front door

8. Tempered glass front door with vented border

9. Tempered glass front door with meshed border



4U 6U 9U 12U 19 Inch 600x550mm 600x600mm Data Dual Section Wallmount Cabinet with Removable Side Panels 7





4U 6U 9U 12U 19 Inch 600x550mm 600x600mm Data Dual Section Wallmount Cabinet with Removable Side Panels 8

4U 6U 9U 12U 19 Inch 600x550mm 600x600mm Data Dual Section Wallmount Cabinet with Removable Side Panels 9

    Ningbo Latitude International Trade Co.,Ltd is a professional manufacturer specialized in server cabinet, network cabinet, outdoor cabinet, wall cabinet and other communication equipment. For over years, we are always devoting ourselves to research, develop, design and manufacture the indoor and outdoor cabinet products. striving to be effectively dynamic and innovative and always maintained a steady growth although the extremely competitive market, we have the advanced equipment including TruLaser incision machine, TruPunch Presses machine, CNC equipment, spraying paining line and other equipment. In order to assure the stable and high quality of products, we develop the quality control system and operate the manufacturing procession under the International quality system certification.



Our Advantages

1. 100% Manufacturer.

2. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.

3. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.

4. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.

5. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.

6. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.

7. On time delivery rate more than 95%.

4U 6U 9U 12U 19 Inch 600x550mm 600x600mm Data Dual Section Wallmount Cabinet with Removable Side Panels 104U 6U 9U 12U 19 Inch 600x550mm 600x600mm Data Dual Section Wallmount Cabinet with Removable Side Panels 11

          1. Q: Are you a factory or trading company?

              A: We are a Factory, Distributor and Trading Company.

          2. Q: Where is your factory located? How can I visit there?

              A: Our factory and office is located in Ningbo City, China. You can fly to Ningbo airport or

              Shanghai airport, from home or abroad, are warmly welcome to visit us!

          3. Q: Can you do OEM?

              A: Yes, we can do OEM products. It's no problem.

          4. Q: How can I get some samples?

              A: We are honored to offer you samples.

          5. Q: How does your factory do regarding quality control?

              A: Quality is priority. We always attach great importance to quality controlling for to the every

              end. Our factory has gained CE,ROHS,SGS authentication.
